ISO1181-2004[E] 8-Strand Braided Manila Rope

Jiangyin Yongda Cord Net Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ISO1181-2004[E] 8-Strand Braided Manila Rope from wholesalers

    Buy cheap ISO1181-2004[E] 8-Strand Braided Manila Rope from wholesalers
    • Buy cheap ISO1181-2004[E] 8-Strand Braided Manila Rope from wholesalers

    ISO1181-2004[E] 8-Strand Braided Manila Rope

    Ask Lasest Price
    Brand Name : YONGDA
    Model Number : ISO1181-2004[E] 8-Strand Braided Manila Rope
    Certification : Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)
    Price : As per quotation
    Payment Terms : T/T, L/C, etc
    Supply Ability : As ordered
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    ISO1181-2004[E] 8-Strand Braided Manila Rope

    ISO1181-2004[E] 8-Strand Braided Manila Rope


    Description:

    ISO1181-2004[E] 8-Strand Braided Manila Rope is made by high quality manila fibre. Base on its strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly and other characteristics, ISO1181-2004[E] 8-Strand Braided Manila Rope can be widely used in navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation,ship or other marine offshore mooring ropes and other industries.It constructed of four S-twist strands and four Z-twist strands arranged so that S-twist strands alternate (individually or in pairs) with Z-twist strands(indibidually or in pairs).


    Main Technical Specifications:

    1.Standard: ISO1181-2004[E]

    2.Material: Manila fiber

    3.Diameter: 16mm to 96mm

    4.Construction: 8-Strand

    5.Type: Luricated or Un-oiled

    6.Test: Destructive and Tension test

    7.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

    8.Color: White, as your needs
    9.Application: Navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation, ship or other marine offshore mooring ropes and other industries etc

    10.Advantages: strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly

    11.Packing: A reel, a coil, a hank, a box, a bag or as specified by the buyer

    12.Delivery length: 100 m; 183 m; 200 m; 220 m; 366 m or as specified by the buyer

    Main Technical Parameters:

    Linear desity and minimum breaking strength(MBS) of ISO1181-2004[E] 8-Strand Braided Manila Rope

    Reference NO.
    mm
    Linear density

    Minimum breaking strength

    kN

    Nominal
    ktex
    Tolerance
    %
    16177±519.3
    1822524.3
    2027729.8
    2233535.9
    2439942.5
    2646849.6
    2854357.2
    3062465.4
    3271074.1
    3689893.1
    401110114
    441340137
    481600162
    521870189
    562170219
    602490250
    642840283
    683200318
    723590355
    764000395
    804440436
    885370525
    966390622
    1. The linear density(in kilotex) corresponds to the net mass per length of the rope,expressed in grams per metre or in kilograms per thousand metres.
    2. The linear density is under reference tension and is measured as specified in ISO 2307.
    3. The breaking strength quoted above relate to new dry and wet ropes.

    Drawing of ISO1181-2004[E] 8-Strand Braided Manila Rope:

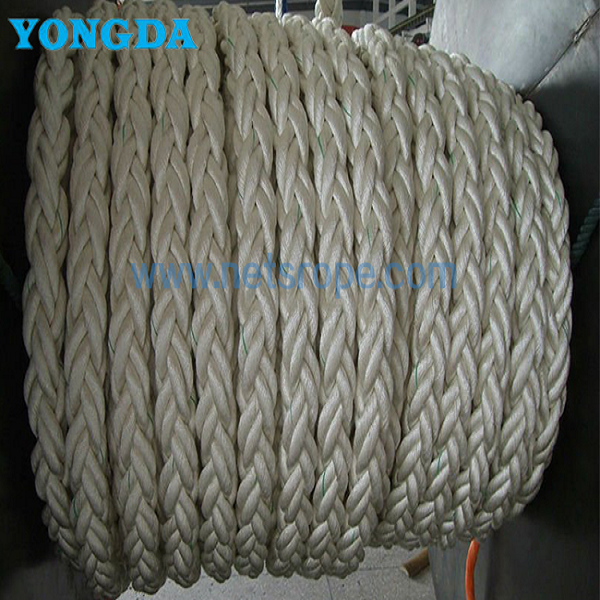

    Product Photo of ISO1181-2004[E] 8-Strand Braided Manila Rope:


    FAQ:
    Q0: Are you a factory or trading company?
    A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.
    Q1: What is your terms of packing?
    A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.
    Q2: What is your terms of payment?
    A2: T/T & LC.
    Q3: What is your terms of delivery?
    A3: EXW, FOB, CFR, CIF, DDU.
    Q4: How about your delivery time?
    A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.
    Q5: Can you produce according to the samples?
    A5: Yes, we can produce as your samples or drawings.
    Q6: What is your sample policy?
    A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.
    Q7: Do you test all your goods before delivery?
    A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
