ISO1181-2004[E] 8-Strand Braided Sisal Rope
Description:
ISO1181-2004[E] 8-Strand Braided Sisal Rope shall consist of four S-twist strands and four Z-twist strands arranged so that S-twist strands alternate (individually or in pairs) with Z-twist strands(indibidually or in pairs). Base on its strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly and other characteristics, ISO1181-2004[E] 8-Strand Braided Sisal Rope can be widely used in navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation,ship or other marine offshore mooring ropes and other industries.
Main Technical Specifications:
1.Standard: ISO1181-2004[E]
2.Material: Sisal fiber
3.Diameter: 16mm to 96mm
4.Construction: 8-Strand
5.Type: Luricated or Un-oiled
6.Test: Destructive and Tension test
7.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate
8.Color: White, as your needs
9.Application: Navigation, oil fields, mining, aquatic products, logging, construction, civil, transportation, ship or other marine offshore mooring ropes and other industries etc
10.Advantages: strong tension, acid and alkali resistance, friction resistance, cold resistance, environmentally friendly
11.Packing: A reel, a coil, a hank, a box, a bag or as specified by the buyer
12.Delivery length: 100 m; 183 m; 200 m; 220 m; 366 m or as specified by the buyer
Main Technical Parameters:
Linear desity and minimum breaking strength(MBS) of ISO1181-2004[E] 8-Strand Braided Sisal Rope
Reference NO. mm | Linear density | Minimum breaking strength kN | |
Nominal ktex | Tolerance % | ||
16 | 177 | ±5 | 17.2 |
18 | 225 | 21.6 | |
20 | 277 | 26.5 | |
22 | 335 | 31.9 | |
24 | 399 | 37.8 | |
26 | 468 | 44.2 | |
28 | 543 | 51.0 | |
30 | 624 | 58.3 | |
32 | 710 | 66.0 | |
36 | 898 | 82.9 | |
40 | 1110 | 102 | |
44 | 1340 | 122 | |
48 | 1600 | 145 | |
52 | 1870 | 169 | |
56 | 2170 | 195 | |
60 | 2490 | 223 | |
64 | 2840 | 253 | |
68 | 3200 | 284 | |
72 | 3590 | 317 | |
76 | 4000 | 352 | |
80 | 4440 | 389 | |
88 | 5370 | 468 | |
96 | 6390 | 553 | |
|
Drawing of ISO1181-2004[E] 8-Strand Braided Sisal Rope:

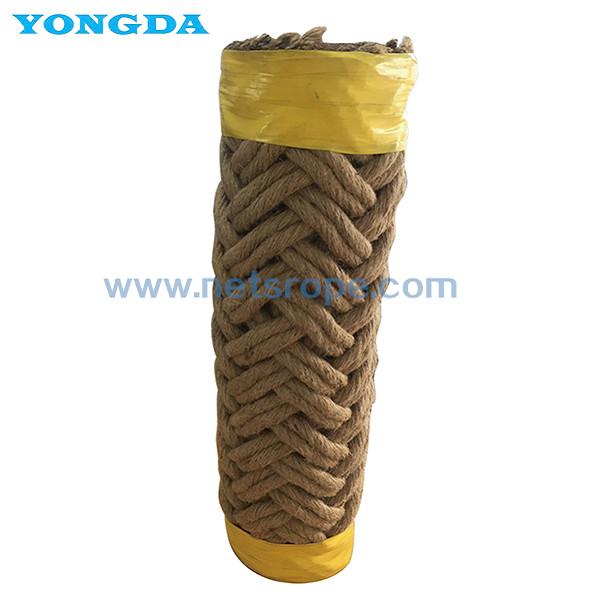

Product Photo of ISO1181-2004[E] 8-Strand Braided Sisal Rope:
FAQ:
Q0: Are you a factory or
trading company?
A0: We are a professional manufacturer for synthetic rope, rope
net, rope ladders and relevant etc. We also trade steel wire rope
and etc.
Q1: What is your terms of packing?
A1: We use synthetic bags for package. We can pack the goods in
your brand after your approval.
Q2: What is your terms of payment?
A2: T/T & LC.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A4: Generally, it will take 1 to 7 days after receiving payment.
The specific delivery time depends on the products and the
quantity.
Q5: Can you produce according to the samples?
A5: Yes, we can produce as your samples or drawings.
Q6: What is your sample policy?
A6: We can supply the sample it is stock available, while courier
cost and sample cost (it depends) are to be covered by buyer. It
will be refunded for next time order.
Q7: Do you test all your goods before delivery?
A7: We test our finished products & raw material by bathes, and as
requirement by third party case by case
![]() |
