GB/T 33364-2016 6 Strand 6x61N,6x91N Offshore Mooring Steel Wire Rope

Description:

GB/T 33364-2016 6 Strand 6x61N,6x91N Offshore Mooring Steel Wire Rope is is composed of independent wire rope core (IWRC) or wire strand core (WSC) and constructed in right ordinary lay(s Z) or left ordinary lay(z S) .It is made of high tensile strength steel wire.Due to its light weight, high strength, can withstand impact load,it is mainly used for removable offshore,such as positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system. Because of ocean condition,when it is used for mooring systems, the six-strand wire rope is expendable and needs to be replaced every few years.

Main Technical Specifications:

1.Standard: GB/T 33364-2016

2.Material: Galvanized high tesile steel wire

3.Diameter: 80mm to 128mm

4.Construction: 6X65FNS,6X76WSNS,6X80WSNS,6X84WSNS,6X97SWSNS,6X103SWSNS,6X111SWSNS,6X103FSNS,6X109SWSNS

5.Type: WS~IWRC

6.Test: Destructive and Tension test

7.Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

8.Surface treatment: Galvanized, Rust-proof greasing

9.Packing:On reels or in coil,as you need.

10.Application: Positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system

11.Advantages: Light weight, high strength, can withstand impact load

Main Technical Parameters:

GB/T 33364-2016 6 Strand Class 6x61N,6x91N Offshore Mooring Steel Wire Rope

		Typical Construction
		Rope Construction	Strand construction	No. of outer layer wires
				Total	Per Strand
		6x65FNS	1-6-6F-12/20-20	120	20
		6x76WSNS	1-7-7+7-14/20-20	120	20
		6x80WSNS	1-7-7+7-14/22-22	132	22
		6x84WSNS	1-7-7+7-14/24-24	144	24
		6x97SWSNS	1-8-8-8+8-16/24-24	144	24
		6x103SWSNS	1-9-9-9+9-18/24-24	144	24
		6x111SWSNS	1-9-9-9+9-18/28-28	168	28
		6x103FSNS	1-7-7F-14-14/30-30	180	30
		6x109SWSNS	1-8-8-8+8-16/30-30	180	30
Nominal Dia. mm	Approximate weight kg/100m	Rope Grade
		1570	1770	1960
		Minimum breaking force kN
80	2780	3480	3920	4340
84	3070	3830	4320	490
88	3370	4210	4740	5250
92	3680	4600	5180	5740
96	4010	5010	5640	6250
100	4350	5430	6120	6780
104	4700	5880	6620	7330
108	5070	6340	7140	7910
112	5460	6810	7680	-
116	5850	7310	8240	-
120	6260	7820	8820	-
124	6690	8350	9420	-
128	7130	8900	10000	-

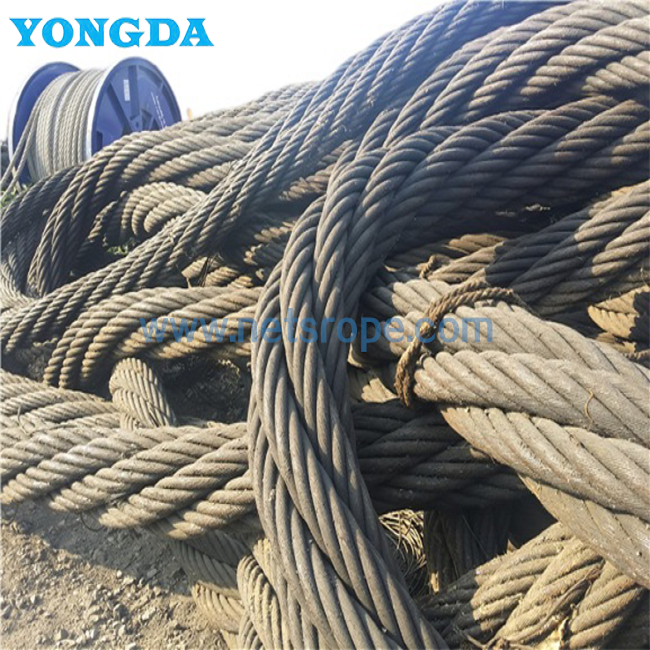

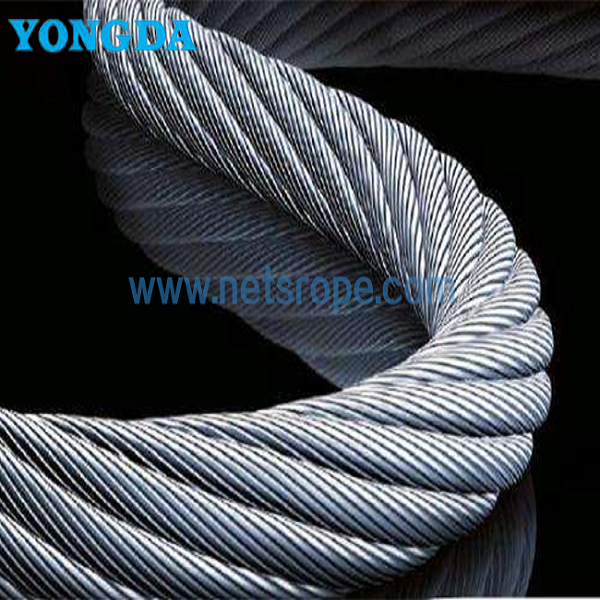

Product of GB/T 33364-2016 6 Strand 6x61N,6x91N Offshore Mooring Steel Wire Rope:
