GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope

Description:

GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope is made of high tensile strength steel wire.It usually have steel core, which is composed of independent wire rope core (IWRC) or wire strand core (WSC) .It is mainly used for removable offshore,such as positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system. In ocean mooring systems, the six-strand wire rope is expendable and needs to be replaced every few years.The contruction of GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope shall be right ordinary lay(s Z) or left ordinary lay(z S).

Main Technical Specifications:

1.Standard: GB/T 33364-2016

2.Material: Galvanized high tesile steel wire

3.Diameter: 72mm to 128mm

4.Construction: 6x55SWS,6x61FWS,6x64SFS

5.Type: WS~IWRC

6.Test: Destructive and Tension test

7.Classification Certificates: RINA ,BV ,CCS ,KR ,NK ,ABS ,DNV ,LR and Mill Certificate

8.Surface treatment: Galvanized, Rust-proof greasing

9.Packing:On reels or in coil,as you need.

10.Application: Positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system

11.Advantages: Light weight, high strength, can withstand impact load

Main Technical Parameters:

GB/T 33364-2016 6 Strand Class 6x61 Offshore Mooring Steel Wire Rope

		Typical Construction
		Rope Construction	Strand construction	No. of outer layer wires
				Total	Per Strand
		6x55SWS	1-9-9-9+9-18	108	18
		6x61FWS	1-5-5F-10-10+10-20	120	20
		6x64SFS	1-9-9-9F-18-18	108	18
Nominal Dia. mm	Approximate weight kg/100m	Rope Grade
		1570	1770	1960
		Minimum breaking force kN
72	2260	2900	3270	3620
76	2510	3230	3640	4030
80	2780	3580	4030	4470
84	3070	3940	4450	4920
88	3370	4330	4880	5400
92	3680	4730	5330	5910
96	4010	5150	5810	6430
100	4350	5590	6300	6980
104	4710	6050	6820	7550
108	5070	6520	7350	-
112	5460	7010	7900	-
116	5850	7520	8480	-
120	6260	8052	9070	-
124	6690	8590	9690	-
128	7130	9160	10300	-

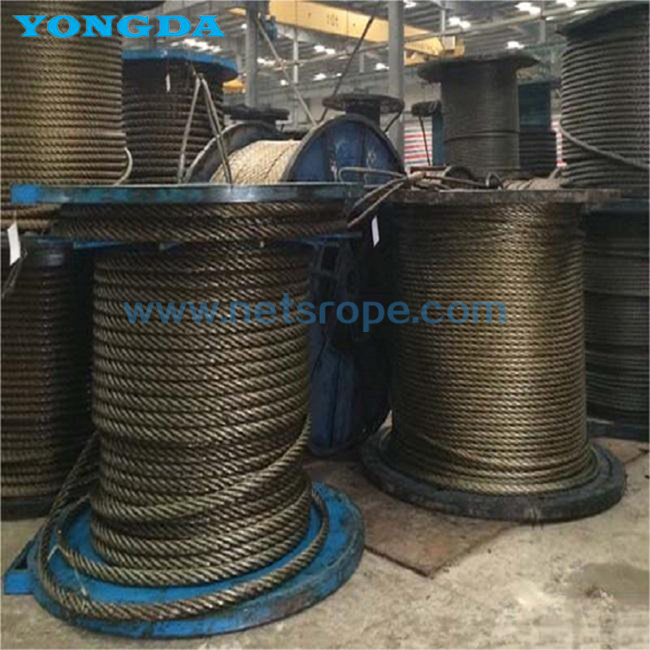

Product of GB/T 33364-2016 6 Strand 6x61 Offshore Mooring Steel Wire Rope:
