GB/T8050-2017 4 Strand Polypropylene Split Film Fibre Ropes
Description:
GB/T8050-2017 4 strand polypropylene split film fibre rope is made of polypropylene split film. It exhibits excellent resistance to oil, corrosion and most common chemicals. The structure of 4 strand polypropylene split film rope provides high strength and moderate stretch. The rope has the advantage of being lightweight, durable and economical, while offering good resistance to abrasion and UV rays,floating and will not absorb water. It is commonly used in packaging and agriculture.
Main Technical Specifications:
Main Technical Parameters:
| Reference NO.1 | Linear density2.3 | Minimum breaking strength kN4.5 | ||
| Nominal ktex | Tolerance % | Unspliced ropes | Ropes with eye-spliced terminations | |
| 10 | 45.2 | ±10 | 14 | 12.6 |
| 12 | 65.1 | 19 | 17.1 | |
| 14 | 88.6 | 26.5 | 23.9 | |
| 16 | 116 | ±5 | 33.5 | 30.2 |
| 18 | 146 | 45 | 40.5 | |
| 20 | 181 | 53 | 47.7 | |
| 22 | 219 | ±5 | 60 | 54 |
| 24 | 260 | 71 | 63.9 | |
| 26 | 306 | 80 | 72 | |
| 28 | 354 | ±5 | 95 | 85.5 |
| 30 | 407 | 106 | 95.4 | |
| 32 | 463 | 125 | 113 | |
| 36 | 586 | 150 | 135 | |
| 40 | 723 | 180 | 162 | |
| 44 | 875 | 224 | 202 | |
| 48 | 1040 | 250 | 225 | |
| 52 | 1220 | 300 | 270 | |
| 56 | 1420 | 335 | 302 | |
| 60 | 1630 | 400 | 360 | |
| 64 | 1850 | 450 | 405 | |
| 72 | 2340 | 560 | 504 | |
| 80 | 2890 | 670 | 603 | |
| 88 | 3500 | 800 | 720 | |
| 96 | 4170 | 950 | 855 | |
| 104 | 4890 | 1120 | 1008 | |
| 112 | 5670 | 1250 | 1125 | |
| 120 | 6510 | 1400 | 1260 | |
1.The reference number corresponds to the approximate diameter, in millimetres. 2. The linear density, in kilotex, corresponds to the net mass per length of the rope, expressed in grams per metre or in kilograms per kilometre. 3. The linear density is obtained under reference tension and is measured as specified in ISO2307. 4. The breaking forces relate to new, dry and wet ropes. 5. A force determined by the test methods specified in ISO2307 is not necessarily an accurate indication of the force at which that rope might break in other circumstances and situations. The type and quality of terminations, the rate of force application, prior conditioning and previous force applications to the rope can significantly influence the breaking force. A rope bent around a post, capstan, pulley or sheave may break at a significantly lower force. A knot or other distortion in a rope may significantly reduce the breaking force. | ||||

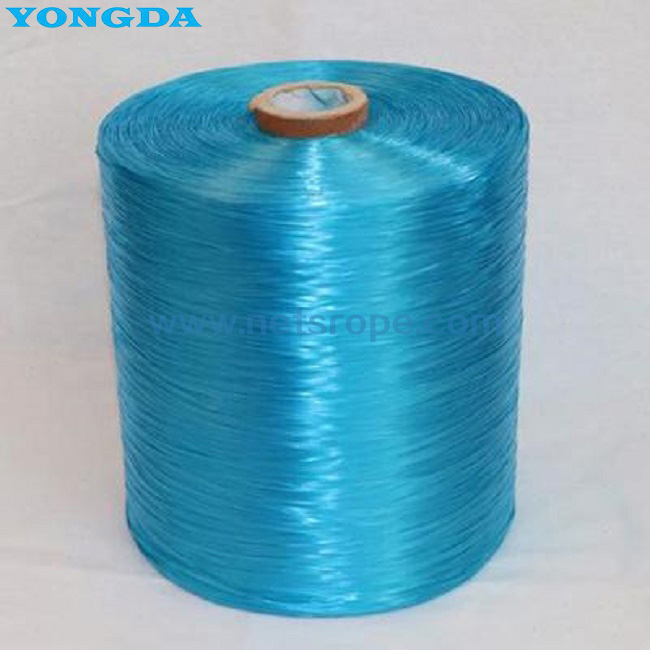

Product of GB/T8050-2017 4 strand polypropylene split film fibre rope:
FAQ:
Q0: Are you a factory or trading company?
A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.
Q1: What is your terms of packing?
A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.
Q2: What is your terms of payment?
A2: T/T & LC.
Q3: What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, DDU.
Q4: How about your delivery time?
A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.
Q5: Can you produce according to the samples?
A5: Yes, we can produce as your samples or drawings.
Q6: What is your sample policy?
A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.
Q7: Do you test all your goods before delivery?
A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
|
|
