8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm

Jiangyin Yongda Cord Net Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm from wholesalers

    Buy cheap 8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm from wholesalers
    • Buy cheap 8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm from wholesalers

    8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm

    Ask Lasest Price
    Brand Name : YONGDA
    Model Number : 8 strand polypropylene monofilament fibre rope
    Certification : Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)
    Price : As per quotation
    Payment Terms : T/T, L/C, etc
    Supply Ability : As ordered
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    8 Strand Polypropylene Monofilament Fiber Ropes GB/T8050-2017 120mm

    GB/T8050-2017 8 strand polypropylene monofilament fiber ropes


    Description:

    GB/T8050-2017 8 strand polypropylene monofilament fiber rope is made entirely of polypropylene.The twisted rope has good shock absorption, does not kink, has high tensile strength, durable knots and excellent performance, making it reliable for both indoor and outdoor use.It is a practical solution for decorative, ranching, agricultural, and even marine use, like mooring ropes,towing rope etc.


    Main Technical Specifications:

    1. Standard: GB/T8050-2017
    2. Material: Polypropylene monofilament
    3. Diameter: 28mm to 160mm
    4. Construction: 8-strand
    5. Structure: Z-twist and S-twist
    6. Test: Destructive and Tension test
    7. Classification Certificates: RINA ,BV ,CCS ,KR ,NK ,ABS ,DNV ,LR and Mill Certificate
    8. Color: White, Blue, Yellow, Orange as ordered
    9. Application: Decorative, ranching, agricultural,marine use
    10. Advantages: Lightweight, good resistance to abrasion and UV light, good environmental resistance

    Main Technical Parameters:

    Reference NO.1Linear density2.3Minimum breaking strength kN4.5

    Nominal

    ktex

    Tolerance

    %

    Unspliced ropesRopes with eye-spliced terminations
    28354±510090
    30407112101
    32463132119
    36586160144
    40723200180
    44875236212
    481040280252
    521220335302
    561420375338
    601630425383
    641850475428
    722340600540
    802890750675
    883500900810
    9641701060954
    104489012501125
    112567014001260
    120651016001440
    128741019001710
    136836021201908
    144937023602124
    1601160028002520

    1.The reference number corresponds to the approximate diameter, in millimetres.

    2. The linear density, in kilotex, corresponds to the net mass per length of the rope, expressed in grams per metre or in kilograms per kilometre.

    3. The linear density is obtained under reference tension and is measured as specified in ISO2307.

    4. The breaking forces relate to new, dry and wet ropes.

    5. A force determined by the test methods specified in ISO2307 is not necessarily an accurate indication of the force at which that rope might break in other circumstances and situations. The type and quality of terminations, the rate of force application, prior conditioning and previous force applications to the rope can significantly influence the breaking force. A rope bent around a post, capstan, pulley or sheave may break at a significantly lower force. A knot or other distortion in a rope may significantly reduce the breaking force.

    Drawing of GB/T8050-2017 8 Strand Polypropylene Monofilament Fibre Ropes:

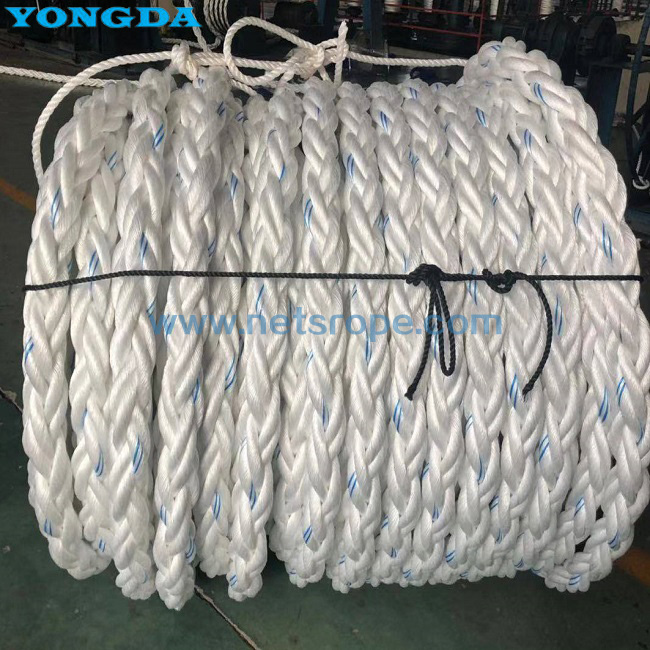

    Product of GB/T8050-2017 8 Strand Polypropylene Monofilament Fibre Ropes:

    FAQ:

    Q0: Are you a factory or trading company?

    A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.


    Q1: What is your terms of packing?

    A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.


    Q2: What is your terms of payment?

    A2: T/T & LC.


    Q3: What is your terms of delivery?

    A3: EXW, FOB, CFR, CIF, DDU.


    Q4: How about your delivery time?

    A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.


    Q5: Can you produce according to the samples?

    A5: Yes, we can produce as your samples or drawings.


    Q6: What is your sample policy?

    A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.


    Q7: Do you test all your goods before delivery?

    A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
