Six Layer Full Locked Offshore Mooring Steel Wire Rope

Jiangyin Yongda Cord Net Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Six Layer Full Locked Offshore Mooring Steel Wire Rope from wholesalers

    Buy cheap Six Layer Full Locked Offshore Mooring Steel Wire Rope from wholesalers
    • Buy cheap Six Layer Full Locked Offshore Mooring Steel Wire Rope from wholesalers

    Six Layer Full Locked Offshore Mooring Steel Wire Rope

    Ask Lasest Price
    Brand Name : YONGDA
    Model Number : GB/T 33364-2016
    Certification : Class certificates (RINA, BV, CCS, KR, NK, ABS, DNV, LR, IRS, RS, EC, TUV and Mill Certificate)
    Price : As per quotation
    Payment Terms : T/T, L/C, etc. L/C D/A D/P T/T Western Union MoneyGram
    Supply Ability : As ordered
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Six Layer Full Locked Offshore Mooring Steel Wire Rope

    Six Layer(and above) Full-locked Offshore Mooring Steel Wire Rope


    Product Description:

    GB/T 33364-2016 Five-Layer and Above Fully Locked Offshore Mooring Wire Rope is a specialized wire rope designed for long-term mooring applications in offshore environments. It possesses the following key features and advantages:

    High-density coefficient: The wire rope has a high-density coefficient above 0.9, suitable for various wire rope connections. It provides approximately 65% higher total breaking strength compared to ordinary wire ropes of the same diameter.

    Cylindrical rod-like structure: The wire rope has a cylindrical rod-like structure, offering a larger support area. This reduces unit area pressure, ensures even stress distribution, and extends the service life.

    Smooth sealed surface: The wire rope has a smooth and sealed surface, preventing the penetration of external air and water, protecting the internal wires from corrosion. Additionally, the internal lubricating oil is well preserved, ensuring optimal performance of the wire rope.

    Excellent anti-rotation characteristics: The wires in adjacent layers are twisted in opposite directions, providing excellent anti-rotation properties. This reduces the twisting and structural elongation of the wire rope.

    Multiple surface treatment options: The wire rope can be subjected to various surface treatments such as bright finish, galvanization, plastic coating, or rust-proof lubrication, catering to different environmental and application requirements.

    Rigorous testing and certification: The wire rope undergoes destructive testing and tension testing to ensure high quality and reliability. It has obtained certifications from reputable classification societies such as RINA, BV, CCS, CR, NK, ABS, DNV, LR, as well as manufacturer certificates, proving its reliable quality.

    The Six-Layer (and above) Full-Locked Offshore Mooring Steel Wire Rope is a high-performance, durable, and corrosion-resistant solution for offshore mooring systems. With its robust construction, high strength, and resistance to environmental stressors, it plays a critical role in ensuring the safety and stability of offshore platforms, vessels, and other maritime structures. Its superior flexibility, long lifespan, and ease of handling make it a trusted choice for industries such as offshore oil and gas, offshore wind energy, and marine transportation. Whether securing large rigs or floating platforms, this steel wire rope offers unmatched reliability and performance in the most challenging offshore environments.


    Product Features:

    High strength: Manufactured using high-strength steel wire, it exhibits excellent tensile strength, capable of withstanding high tension and heavy loads, ensuring safe and reliable mooring operations

    Good corrosion resistance: The wire is treated with galvanization or other surface treatments, providing excellent corrosion resistance to withstand harsh environmental conditions such as seawater, acids, and alkalis, thereby extending its service life

    Low structural elongation: The wire rope exhibits minimal structural elongation, meaning it maintains a stable length under load, reducing elastic deformation caused by load variations, enhancing system stability and accuracy

    High reliability: Through rigorous testing and quality control, the wire rope complies with standard specifications and has obtained recognition from multiple certification bodies, ensuring its high reliability and consistent performance

    Longevity: The wire rope is constructed with high-quality materials and manufacturing processes, resulting in a long service life, enabling it to be used in harsh marine environments without failure, reducing maintenance and replacement costs.

    Lightweight design: Despite its high strength, the wire rope is designed to be lightweight, making it advantageous for installation, carrying, and transportation

    Flexibility: Different diameters and specifications of the wire rope can be provided according to customer requirements to meet specific project needs

    Environmentally friendly: The wire rope's surface treatment options include environmentally friendly plastic coatings or rust-proof lubrication, minimizing its impact on the environment

    In summary, GB/T 33364-2016 Five-Layer and Above Fully Locked Offshore Mooring Wire Rope offers high strength, corrosion resistance, low elongation, high reliability, long service life, lightweight design, and environmental friendliness. It is suitable for various demanding offshore mooring applications


    Main Technical Specifications:

    Standard: GB/T 33364-2016

    Material: Galvanized high tesile steel wire

    Diameter: 88mm to 140mm

    Grade:1470,1570,1670,1770

    Type: IWRC or WSC

    Surface treatment:bright,Zinc-coated,Plastic coated, Rust-proof greasing

    Test: Destructive and Tension test

    Classification Certificates: RINA ,BV ,CCS ,CR ,NK ,ABS ,DNV ,LR and Mill Certificate

    Packing:On reels or in coil,as you need.

    Application: long tern mooring of positioning and anchoring of mobile drilling platform, floating production unit and offshore loading system

    Advantages: high tensile strength,high corrosion resistance,long service life, small structure elongation


    Main Technical Parameters:

    GB/T 33364-2016 Six Layer(and above) Full-locked Offshore Mooring Steel Wire Rope

    Nominal Dia.

    mm

    Approximate weight

    kg/100m

    Nominal metal cross-sectional area

    mm2

    Rope Grade
    1470157016701770
    Minimum breaking force kN
    88490055006630708075307980
    92536060107240773082308720
    96583065407880842089609490
    1006330710085609140972010300
    10468507670925098801050011100
    108738082809980107001130012000
    1127940891010700115001220012900
    11685209550115001230013100-
    120912010200123001320014000-
    1249730109001320014000--
    12810400116001400015000--
    13211000124001490015900--
    13611700131001580016900--
    14012400139001680017900--
    Remark:When it is plastic coated,the weight will increase 3.5%

    Drawing of GB/T 33364-2016 Six Layer(and above) Full-locked Offshore Mooring Steel Wire Rope:


    Six Layer Full Locked Offshore Mooring Steel Wire Rope

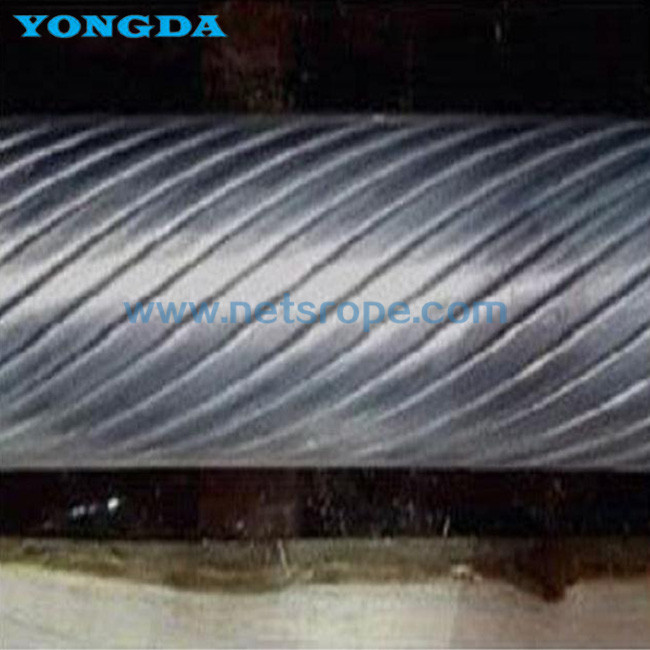

    Photos of GB/T 33364-2016 Six Layer(and above) Full-locked Offshore Mooring Steel Wire Rope:


    Six Layer Full Locked Offshore Mooring Steel Wire Rope


    Six Layer Full Locked Offshore Mooring Steel Wire Rope


    FAQ:

    Q0: Are you a factory or trading company?

    A0: We are a professional manufacturer for synthetic rope, rope net, rope ladders and relevant etc. We also trade steel wire rope and etc.


    Q1: What is your terms of packing?

    A1: We use synthetic bags for package. We can pack the goods in your brand after your approval.


    Q2: What is your terms of payment?

    A2: T/T & LC.


    Q3: What is your terms of delivery?

    A3: EXW, FOB, CFR, CIF, DDU.


    Q4: How about your delivery time?

    A4: Generally, it will take 1 to 7 days after receiving payment. The specific delivery time depends on the products and the quantity.


    Q5: Can you produce according to the samples?

    A5: Yes, we can produce as your samples or drawings.


    Q6: What is your sample policy?

    A6: We can supply the sample it is stock available, while courier cost and sample cost (it depends) are to be covered by buyer. It will be refunded for next time order.


    Q7: Do you test all your goods before delivery?

    A7: We test our finished products & raw material by bathes, and as requirement by third party case by case
